Thursday, 9 June 2016

Monitoring Sensor's Data Over Internet





Once upon a time, we used to see the data of our sensor on a 16x2 LCD. So whenever we need to monitor the readings, we need to see on that LCD and need to stay near to it. But now world has changed and so we need to. Now lets see how we can monitor sensor's reading on any internet enabled devices.

OK!!!!!!!!!!! it was too filmy.

So now in this article, ,we will be learning how we can upload our sensor's data to internet and observe it in graphical manner with the help of a great platform for our IoT projects called Thingspeak.com.

Process

Process of this project goes something like this.


So, first of all the data from DHT11 sensor will be given to Arduino Board. This board will process the data and will giving the signal to ESP8266 for uploading it to Thingspeak.com. This website, after receiving the data will automatically plot the graph of Data vs Time.

DHT11 Sensor

DHT11 is a sensor for measurement of temperature and humidity. Looking inside, it consists of two parts,

i)  A microcontroller



ii) Sensor



This sensor acts like a capacitor whose capacitance changes along with Temperature and Humidity. This raw data is given to the inbuilt microcontroller who will process this analog data and will convert it into a 40 bit digital Serial packet of data. And that 40 bit consists of,


Hence decoding of this serial stream of data in done in Arduino. For that, we are using one library by Adafruit, which you can download it form here.

After that, you need to interface ESP8266 with arduino in order to transfer data to Thingspeak.com

Thingspeak

Thingspeak.com is a perfect companion of you IoT projects.It provides you a platform, which you can use for different applications. As I have used it to create APIs for my project "Fetching Data from Any Website" In this project, we are creating channels in this for plotting graphs.

For that first make an account in this website, then go to channel and then into my channel. In one single channel you can plot upto 8 graphs or we can say 8 fields. You need to give name of each field. As we are plotting graph of Temperature and Humidity, I have named the fields accordingly.


After that, you need to copy the API keys from the API key button on the website. We will copy Write API key as we need to write data on to the graph.



Code

In the code, we are first reading data from the sensor, than connecting ESP8266 to the router whose host name and password we have already entered in the code. Than we will establish a TCP connection at port 80 as to communicate with Thigspeak.com. After that we will be updating the values from sensor to thingspeak.com. We will be providing 15 s delay hence we will be able to observer new value on the graph every 15 s.



You can download the code from here.


After that, you are ready to monitor data from your phone, laptop and any other internet enabled device just log in to your thingspeak.com account. The graph will be something like this.


I have made tutorial videos for this project in both Hindi and English Languages. So if you still didn't get what to do, just have a look to the videos.


Hindi


English





#techiesms
explore | learn | share

Wednesday, 1 June 2016

Testing Your Internet Speed using ESP8266 WiFi module



In this world of connected devices, all our appliances need a proper internet connection all the time. But their is always some fluctuations in the speed or connection of the internet due to some issues. Sometimes its okay but this problem of fluctuation annoys at time of payment gate way, or submitting your college fees. After filling the form, when you press enter button, the scenario is like this


so you need to fill that form again and repeat the procedure. But still this don't happens all the time but I faced this problem so I have tried to make a small solution of this.

           I will be constantly measuring my internet connection's speed so that I come to know
           that my connection is alive or not. Hence at time of pressing submit button after filling
          any form, I will check the status of my internet speed and if the speed is great at that time
          I will submit my form so that I need not to repeat the same procedure again.


Now lets see how can we make a internet speed-o-meter using ESP8266. ESP8266 a great great great module to start with IoT. Cheapest Smallest yet fastest module and again easy to be used. In the era of Internet Of Things, demand of this module has increased a lot. With this, number of projects has also increased using this module. We can do almost anything we can think of using this WiFi module. So I have also made one simple yet useful project using this module along with my Arduino MEGA board.

With the help of only single AT command, you can get your internet speed. Hence this project is really easy to make. The speed you will get is nothing but the response time in milliseconds taken by you internet connection. After that, we can manipulate or map the data into different categorizes like Fast , Normal , Slow.

First I will explain you this concept on your laptop only and than we will implement this logic on our ESP8266 board. On you windows PC, open Command Prompt. Or simply press Windows button and type CMD.

After opening that window just type following statement, and press the enter button

ping -t www.google.com

Result of this will be as follows,


So we are just pinging the server of Google and observing the response time in milliseconds. That's what we gonna do in our project, just pinging the server and mapping this time into suitable speed of our connection. Now lets move towards the hardware part.


Connections

Connection of this module is with Arduino MEGA board is shown below,




This is simple connection in which I have connected ESP8266 WiFi  Rx Tx pins to Serial 1 of my MEGA Board. If you have UNO board, you can go for Software Serial connections.An d I have connected 3 LEDs for indicating status of our internet speed. So this is all on the hardware side, now lets movie towards the code.



Code

As we know that we need to just ping google.com continuosly as to monitor its speed. Their is an AT command for pinging whose syntax is,

AT+PING="www.google.com"

This command will ping google.com you can ping any other website also by just editing the name of the website in above AT command. So we will just send this AT command through our WiFi module and in response we will get the time in milliseconds which we will be converting into speed by simple calculations.

I have attached the link of the code below, so you can definitely download it from there.I have also made a video tutorial on this, so have a look if you haven't understood this yet.




I have also recorded this tutorial in Hindi so in case you are more familiar with Hindi have a look over this video.






Code :- https://github.com/techiesms/Internet-Speed-O-Meter/blob/master/Internet_Speed-o-meter.ino



#techiesms
explore | learn | share






Tuesday, 31 May 2016

All about Smart Keychain

Many time it happens that we are unable to find our keys as we have misplaced it. And generally this happens when we are in great hurry. Frustrating moment......

Try to make a smart keychain for you.



Now not to worry about your keys, they will be always in touch with you. Just trigger them whenever you are unable to find them, they will automatically tell you where they are.

Smart Keychain

Smart keychain is a WiFi keychain, made using ESP8266 12E development board. ESP8266 are great modules to dive into the world of connected devices. So if you find IoT catchy and want to do some projects on this topic, than go grab your  own esp8266 first.

Ok so talking about this project, In project, I have attached a buzzer with this WiFi module and a battery to power them. So in case we are unable to find our keys, we will just take out our smart phone, open an app named Telnet, and will just send data and the keychain will start ringing and with this we can easily track our keys.

Components and Programming


We will require only few components for making this project.They are,


  • General Purpose PCB
  • Female bugstrip
  • ESP8266 12E dev board
  • Buzzer
  • Battery


We have to connect the negative termincal of buzzer to D0 pin of ESP8266 12E board and positive pin to 3.3V. Here D0 pin is nothing but the Built In LED pin of ESP8266 wifi board. Ok so you are done with the connections.Now lets have a look over the code.


I have done its programming in Arduino. I have edited the example code of Telnet to Serial of ESP8266 library by Adafruit. So I have written the code in such a way that first of all it will connect to the wifi router or hotspot device whose ssid name and password we have already provided in the code. After that it will wait for the data from our smart phone. And as soon as any data is received, the buzzer will turn ON and it will start buzzing.

On your smart phone side, you need to download an app named Telnet for the communication with your keys.I have also made a video on this, so In case you didn't understand how to make it, have a look over the video.


Smart Keychain code :- https://github.com/techiesms/Smart-Keychain/blob/master/Smart_Keychain.ino


#techiesms
explore | learn | share

Saturday, 23 April 2016

Practical Application - Modulation Techniques

Signal from device generated is known as base band signal which is not directly transmitted to the desired place but it is modulated before feeding the signal to transmitter. Modulation is a technique of varying any component of carrier signal in proportion to that of base band signal. In this article I have covered several Analog and Digital modulation techniques. Mentioned its basic definition with figure and the important thing, practical application of  that modulation technique.So lets go into brief description and application of some of the techniques.



 Amplitude Modulation

In the simplest way possible, AM can be explained as changing Amplitude of the carrier signal or the high frequency signal with respect to the modulating signal.


Application

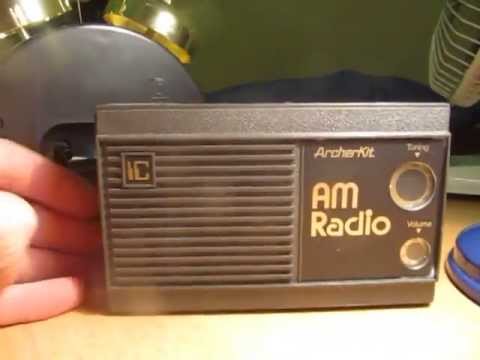

1. It is used in Aircraft for communication between station to pilot and vice versa. So why didn't they opt for FM which is less affected to noise as compared to AM. The reason I found is that, AM is used so that multiple stations on the same channel can be  received. While in FM, reception of weaker signal is blocked by the stronger signal which is normally known as capture effect.






2. It is still used in commercial radio broadcasting. But AM having Low frequency, they only broadcast the commentary or news or we can say only vocals will be their. As the frequency is increased, in ground wave propagation attenuation will increase. Hence FM having higher frequency will get more degraded in ground wave as compared to AM. But still use of FM is more than AM. Because it uses direct wave propagation(line of sight).





Frequency Modulation

In case of frequency Modulation, the frequency of Carrier is varied with the instantaneous value of modulating signal.Advantage of FM over AM is that it has ability to reject the noise or in the other way, noise doesn't affect much in FM.



Applications





1. The most common application which I don't thing any of you is not aware of this. i.e. FM Radio broadcasting.









2. It was surprise for me also to know that, FM was used in VCR tape recorder. For storing Luminance i.e. the black and White portion of the video is recorded by FM modulation in this analog Tape while the color part is directly recorded by the base band signal. I didn't got more data in this but I came to know that it uses FM for recording.






Quadrature Amplitude Modulation

Till now we have seen that, only single parameter is changed with the instantaneous value of base band signal. But in QAM, two parameters of the signal are changed Amplitude and Phase. In short, QAM is made up of AM and PM. QAM is also known as QPSK(Quadrature Phase Shift Keying) which can be treated as mixture of ASK(Amplitude Shift Keying)  and PSK(Phase Shift Keying).

QAM can be of different types depending upon the number of possibilities of Amplitude and Phase.
For Eg. I have shown two fig. in which first is 8-QAM (2 diff. Amplitude & 4 diff. Phase), and the second fig. is 16-QAM ( 4 diff. Amplitude & 4 diff Phase).




Applications

1. NTSC and PAL are color encoding techniques used in analogue TV  and both these encoding techniques uses QAM modulation for encoding the luminance and chrominance information combinedly, for composite video signal.

2. WCDMA(Wideband Code Division Multiple Access) commonly known as 3G connection of our mobile phones also uses QAM. WCDMA uses 64 QAM. 64 QAM has 6 bits per symbol while our 2G connection has only 3 bit per symbol hence 3G is much faster than 2G.
Amplitude Shift Keying

Till now, the modulation techniques were used for analog signal, but now the modulation techniques we will discuss are used in digital signal modulation. First is ASK, it is very much similar to AM, in which Amplitude of the carrier is varied in proportional to the digital base band signal. As digital signal is a binary signal, so we will have only 2 different amplitude value in ASK. ASK modulation is shown below.





Applications

1. ASK Modulation is used in RF Modules. I have used this module many time for making wireless robo car. We need to attach Encoder and Decoder IC to code decode the data. And the digital data from the Encoder is modulated by ASK and than it is transmitted.
2. Some of the RF remotes and RF car keys also uses ASK modulation for transmitting digital data over air. While studying about RF car keys, I found that in some of the car keys, every time the button is pressed different data is transmitted so that one can't just simply copy and transmit the same data to unlock the car.








On Off Keying

On Off Keying(OOK) modulation technique is similar to that of ASK. Difference is that in On Off keying, binary '0' is represented by 0 volt while binary '1' is represented by some fixed amplitude. And frequency in both the cases will be same as carrier frequency.





Application


1.  This modulation technique is used only for low data transfer rate around 100 bits per second. One application of this technique which we use daily is in  IR Remote Control. That remote can be of TV, AC, Radio etc. It works on 38 kHz carrier frequency.






Frequency Shift Keying

FSK can be related with FM. But this modulation technique is used on digital modulation. In this, frequency of the carrier is changed in accordance with the data bit. For digital '1' frequency will be high while for digital '0' frequency will be low. FSK modulation technique is shown in below fig.







Applications

 1. Bluetooth or BLE(Bluetooth Low Energy) which normally used everywhere like in mobile phone, wireless speakers, Laptops, etc uses  GFSK( Gaussian Frequency Shift Keying ) modulation technique for data transmission. Difference between GFSK and FSK is nothing but GFSK has an additional Gaussian Filter to reduce the side band power.





Phase Shift Keying

In phase shift keying, phase of the carrier is changed in accordance with the data or base band signal. For digital data '1', phase shift will be 180 degree while for digital data '0', phase shift will be 0 degree.




QPSK Modulation


Application

1. WiFi has different versions based upon different IEEE standards. Different versions have different speeds and also uses different modulation Techniques. Out of them IEEE 802.11b uses QPSK modulation and 802.11a and g uses 16 or 64 QAM modulation for transmission. Difference between this two is the speed of data transfer. Obviously, 64-QAM is faster than QPSK.


2. Enhanced version of GSM is known as EDGE ( Enhanced Data rates for GSM Evolution ) uses 8-PSK modulation technique for faster data transfer as compared to GSM. GSM uses only 1 bit per symbol for data transfer while EDGE uses 3 bits per  symbol for data transfer. It is commonly called as 2.75G network



Minimum Shift Keying

MSK modulation can be compared with PSK modulation but the difference between them is, in MSK their is no abrupt change in the phase of the carrier signal, rather their is very smooth transition between different phases. It looks similar to that of FSK.




Application

1. MSK is used with Gaussian filter ( commonly known as GMSK ) is used in GSM mobile communication or 2G network. Gaussian filter is used to reduce the side band power of the spectrum. It's data transfer rate is only 1 bit per symbol. Enhanced version of GSM was developed which is known as EDGE( Enhanced Data rates for GSM Evolution ) which uses 8-PSK modulation which uses 3 bits per symbol, faster than GSM.

2. Ships uses GMSK modulation technique for communication with other ships as well as the station. Data like speed of the ship, its current position, Estimated Arrival Time, Type of the ship etc is constantly transmitted through Time division multiplexing. This Tracking system is known as Automatic Identification System (AIS).




This much of data I got when I was researching the topic "Application of modulation techniques". If you know something more than this, do share it with others by commenting below.
